C-UAS(Counter-Unmanned Aircraft System)

Radio Frequency Spectrum Jamming Countermeasure Products

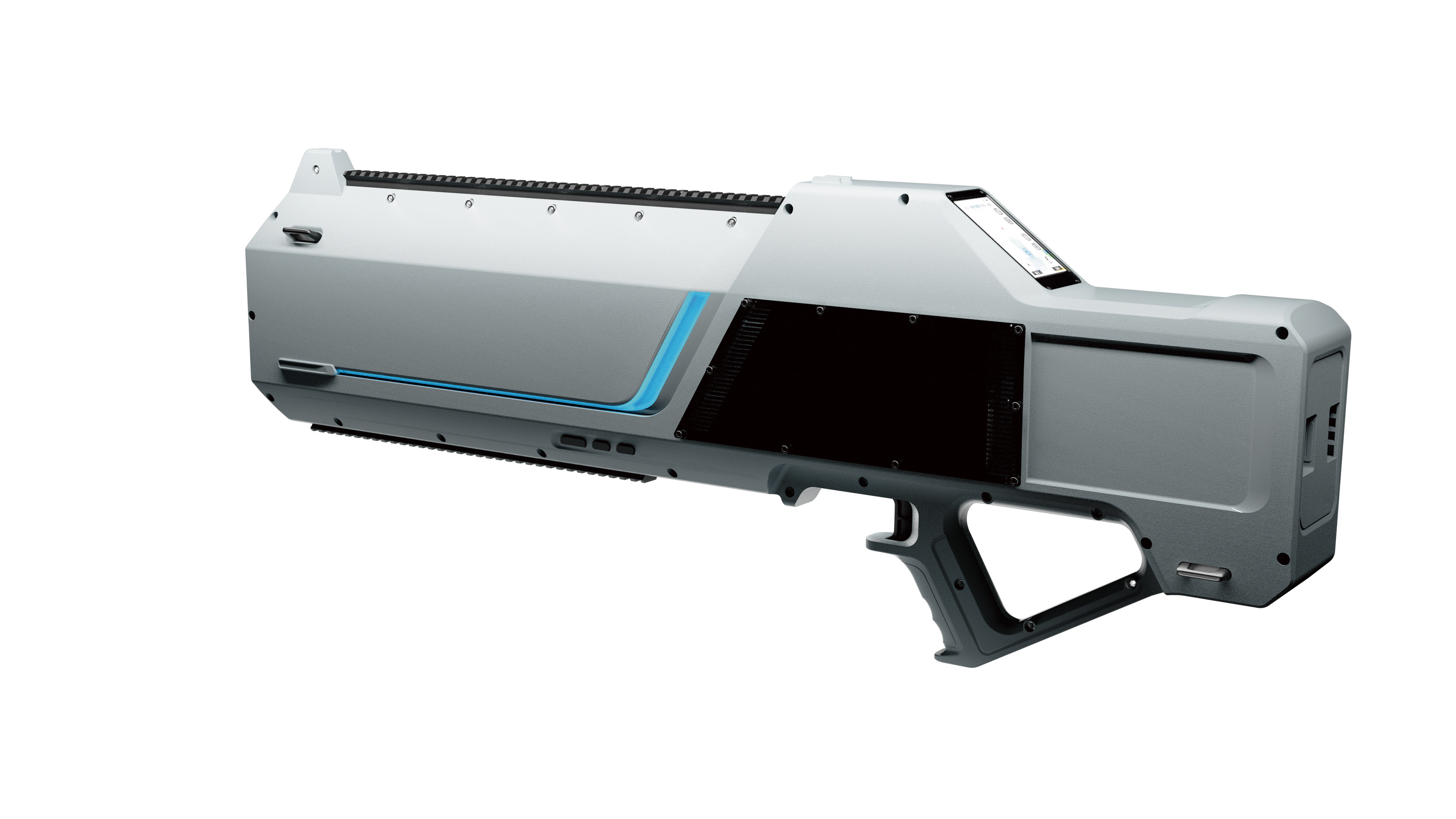

Full-Frequency Reconnaissance Integrated Countermeasure Gun
fanzhishouchi
  • Message parsing /Digital image transmission detection
  • Protocol analysis: DJI O2/O3/O4 flght control protocol models, national standard message
  • Digital image transmission detection: common consumer drone models
  • Detection range ≤km*
  • Working hours Continuous detection ≤6h
  • Fixed frequency interference, write frequency interference
  • Fixed frequency interference: 2.4G, 5.2G, 5.8G
  • Write frequency interference: 600MHz~ 6GHz
  • Interference distance ≤1km
  • Full-band interference ≤30min
  • Configure WiFi and 4G IoT
  • ......

Learn More

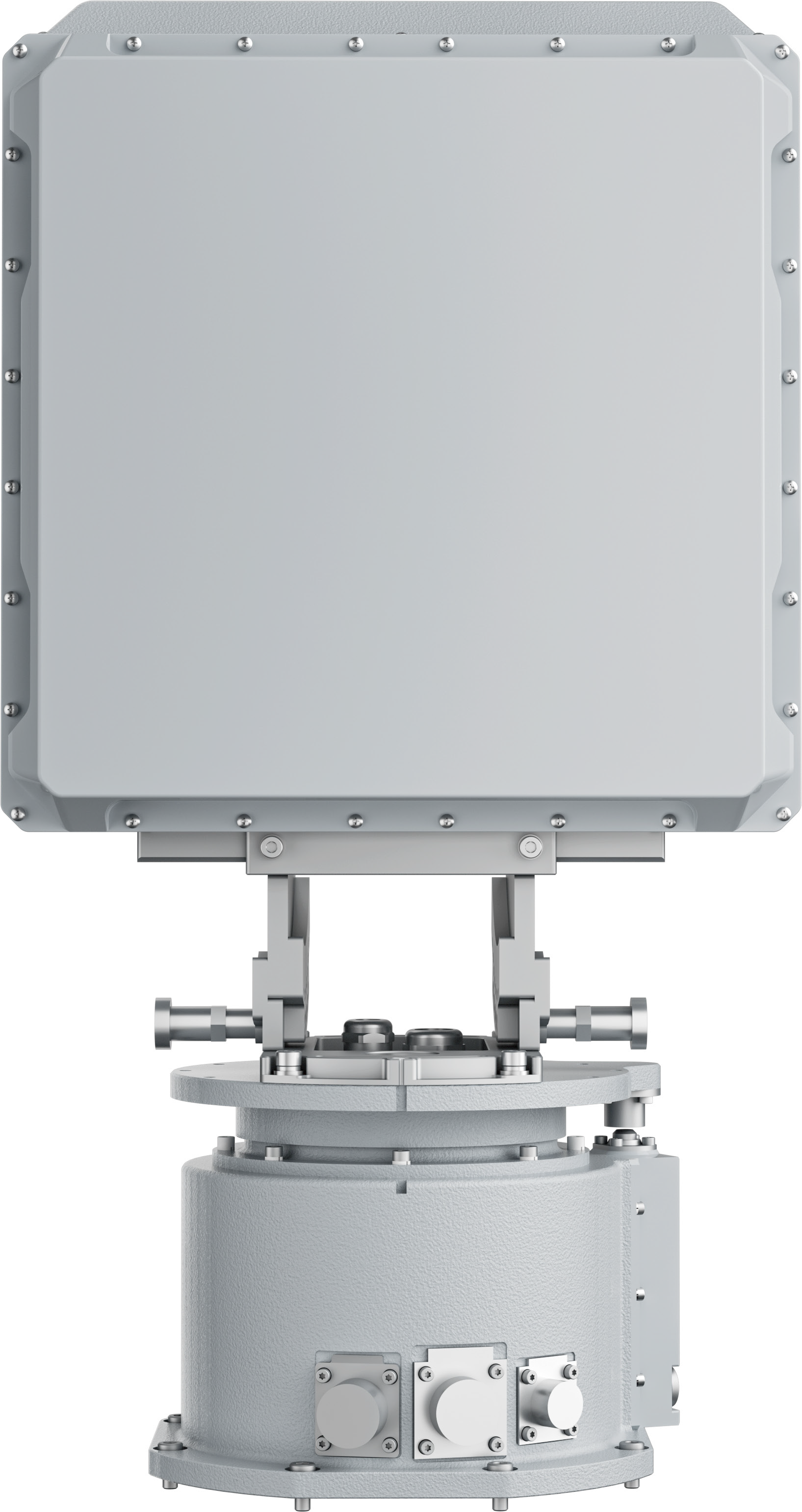

Low-Altitude Detection Radar
Low-Altitude Detection Radar
  • Frequency band: X band
  • Detection range ≤4km (drone, RCS < 0.01m²)
  • Angular coverage: Azimuth 0°~360°, Pitch 0~30°
  • Equipped with tracking and TAS functions
  • Velocity range: 1m/s~100m/s
  • Accuracy: Distance < 10m, azimuth/pitch < 0.6° (scan), < 0.4° (track)
  • Weight ≤28kg
  • Power supply: AC220V
  • Power consumption ≤400W
  • Operating temperature: -40℃~ +55℃

Learn More

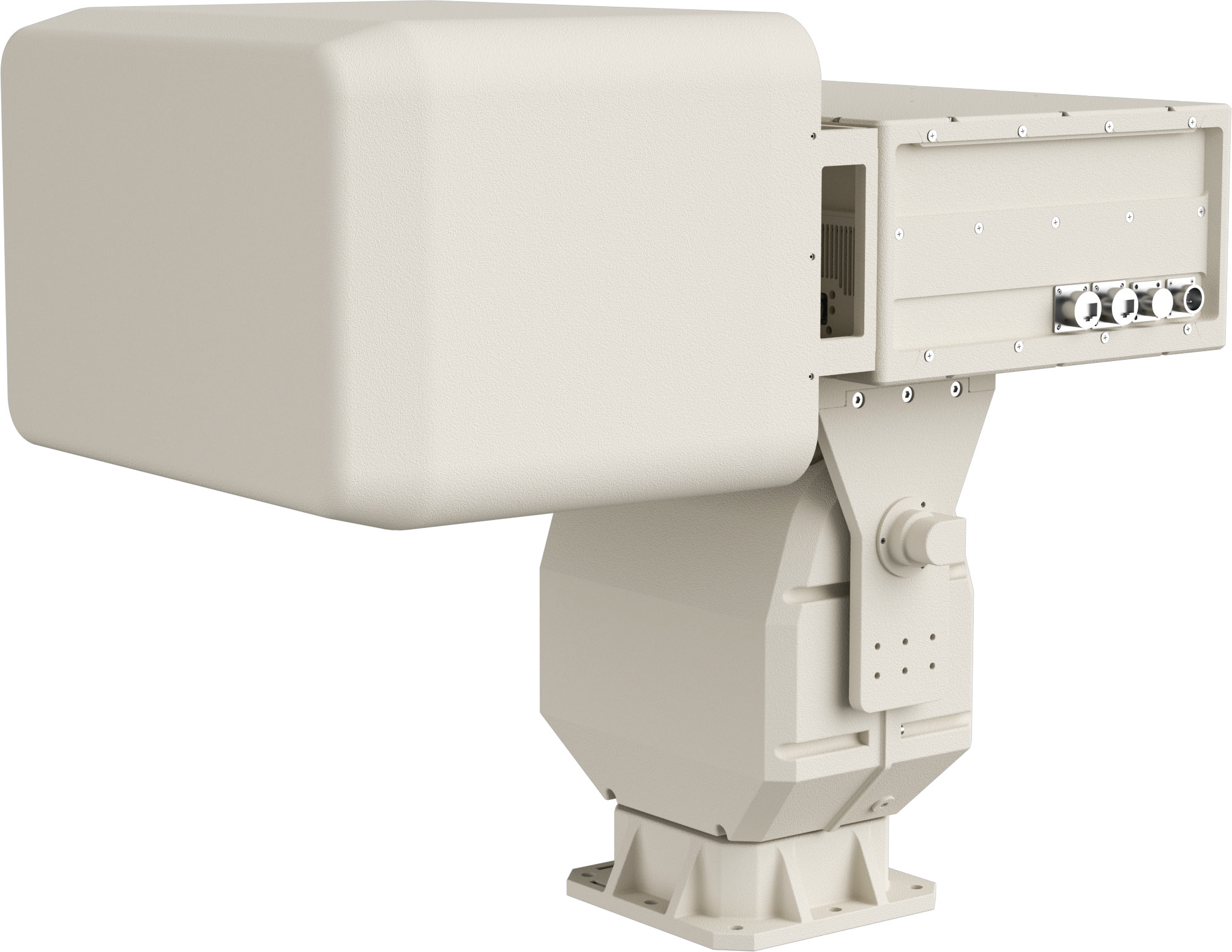

All-Band Directional Jamming Equipment
All-Band Directional Jamming Equipment
  • Interference band: 400MHz-6GHz full frequency band, support frequency band interval and custom interference signal frequency
  • Interference mode: Directional interference
  • Distance of interference: Orientation ≤4.9km*
  • Number of simultaneous interference bands: 6
  • Single channel power: ≤0W
  • Interference pattern: Broadband suppression mode, sweep interference mode, narrowband aiming mode
  • Interference beam angle: ≤2°
  • Interference pattern: Directional eviction, fixed-point emergency landing, regional no-fly zone
  • Navigation type: GPS/GLONASS/BDS/GALILEO
  • Distance of interference: Orientation: ≤4.9km (can be customized as omnidirectional)*

Learn More
Full-Band Drone Detection Jamming Backpack
Full-Band Drone Detection Jamming Backpack
  • Detection band: 300MHz-6GHz
  • Detection mode: Message analysis/Digital image transmission detection/Analog image transmission detection/Digital remote control signal detection
  • Detection model: Protocol analysis: DJI O2/O3/O4 flight control protocol models, national standard message
  • Digital image transmission detection: common consumer drone models
  • Analog image transmission detection: analog image transmission models in the 600MHz-6GHz frequency band
  • Detection range: Message resolution ≤2km*
  • Digital image transmission ≤2km*
  • Simulate postbacks ≤2km*
  • Digital remote control ≤1km*
  • Interference support band: Fixed frequency: 1.5G/2.4G/5.2G/5.8G
  • Write frequency: 0.1G-6G
  • Distance of interference: Omnidirectional ≤1km*

Learn More

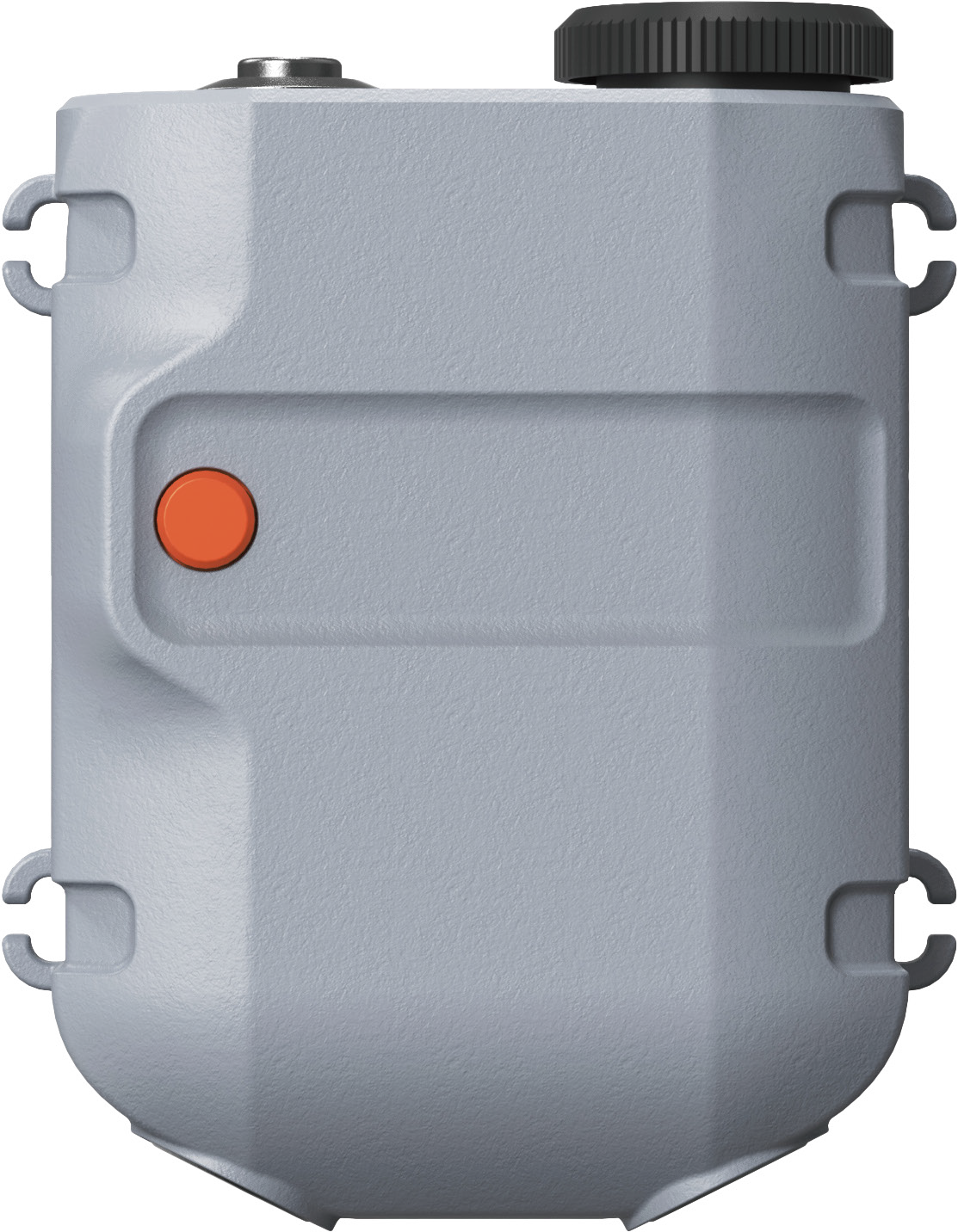

Head-Mounted Laser Alarm
Head-Mounted Laser Alarm
  • Detection wavelength: 0.9um-1.7um wavelength (Laser Range Finder)
  • Alarm mode: Sound warning function, no external sound, sound (voice) transmitted through headphones, and has volume adjustment function
  • Vibration reminder function
  • Detection range: Pulsed laser threat source action distance is 1.2 times*
  • Detection angle: Detection angle 180°, angle resolution 60°
  • Power supply mode: 16340 mAh battery powered, battery replacement, low battery reminder function (≤3.8V light, ≤3V red light)
  • Working hours: 900mAh battery can work continuously for 8 hours or more
  • Operating voltage/current: 3.7V/50mA, maximum operating current 110mA
  • IP protection level: IP65
  • Product weight: 170±10g

Learn More
10+ ADDITIONAL
PRODUCTS
Full Specifications Available

Laser-Type UAV Countermeasure Equipment

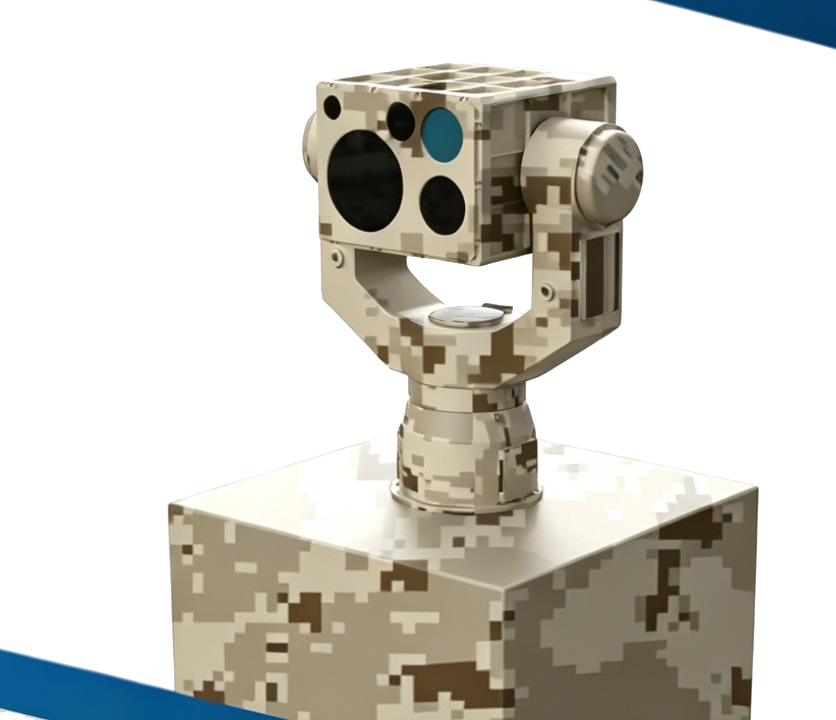

LOW-ALTITUDE SECURITY HIGH-ENERGY LASER STRIKE AND DAMAGE SYSTEM
LOW-ALTITUDE SECURITY HIGH-ENERGY LASER STRIKE AND DAMAGE SYSTEM

  • Wavelength: 1080nm
  • Laser Power: ≤1000W
  • Effective Strike Range: 50m -500m
  • Strike Time: 2s -5s
  • Cooling Method: Air cooling / Water cooling
  • Horizontal Rotation: 350°
  • Pitch Rotation: -25° ~ +70°
  • Horizontal Speed: 0.01°/s ~ 45°/s
  • Pitch Speed: 0.01°/s ~ 45°/s
  • Acceleration: 60°/s²
Learn More

Rocket-Type UAV Countermeasure Equipment

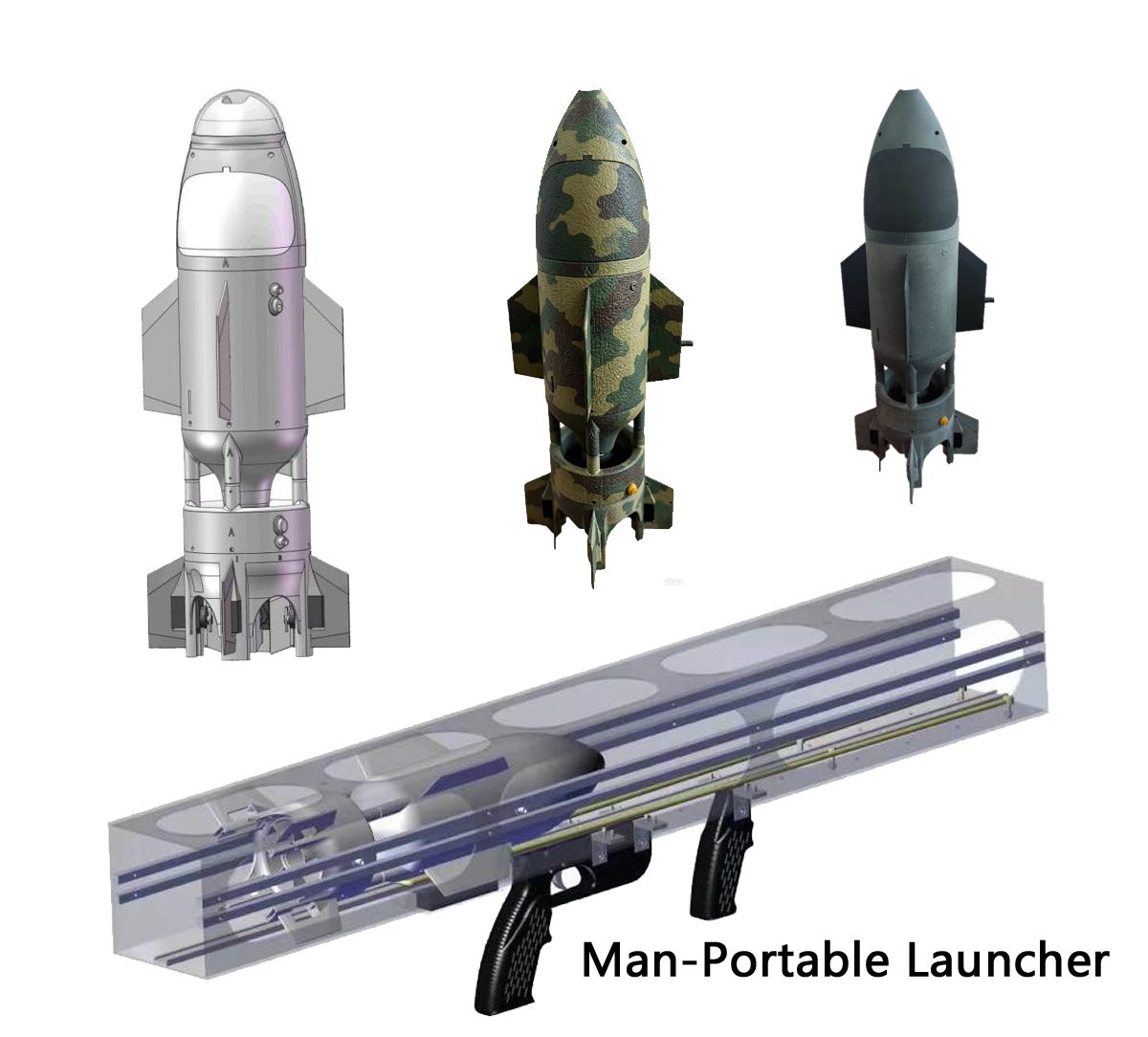

Rocket Interceptor C-UAS
Rocket Interceptor C-UAS
  • Max speed: 65 m/s (234 km/h) / 75 m/s (270 km/h)
  • Max engagement altitude: >- km / >- km
  • Flight range: >- km / >- km
  • Flight endurance: 150 min / 200 min
  • Launch mode: Vertical omnidirectional (360°)
  • Guidance mode: INS + Satellite + Command + Optical
  • Engagement method: Net capture / Blast
  • Interceptor mass: 1,300 kg / 3,200 kg
Learn More
