| Flight Platform
|
|
| Empty weight
|
55.2 kg (lifting payload), 60.2 kg (empty lifting load)
|

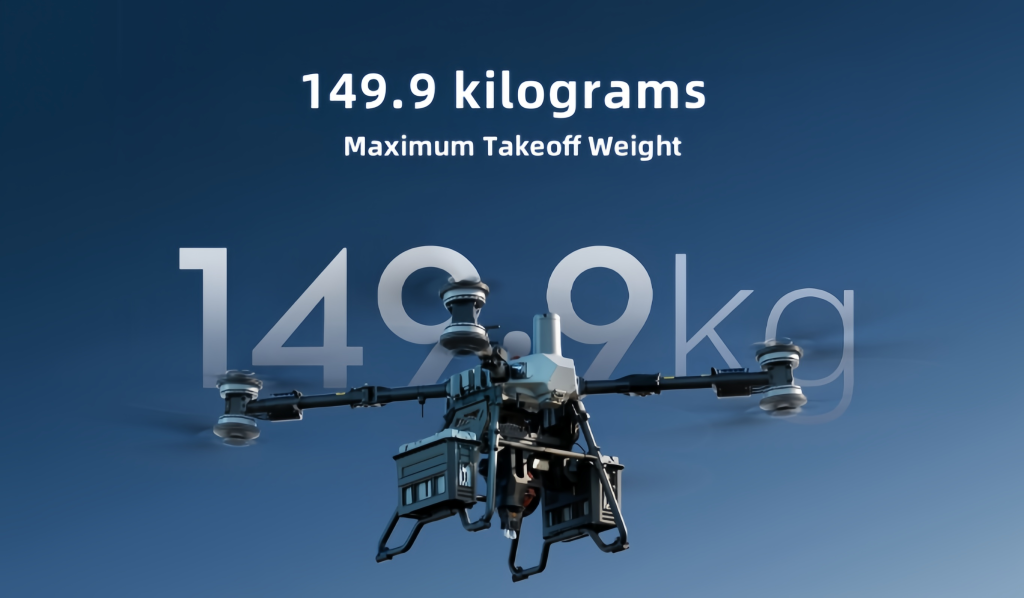

| Maximum takeoff weight
|
149.9 kg
|
| Maximum wheelbase
|
2330 mm (diagonal)
|

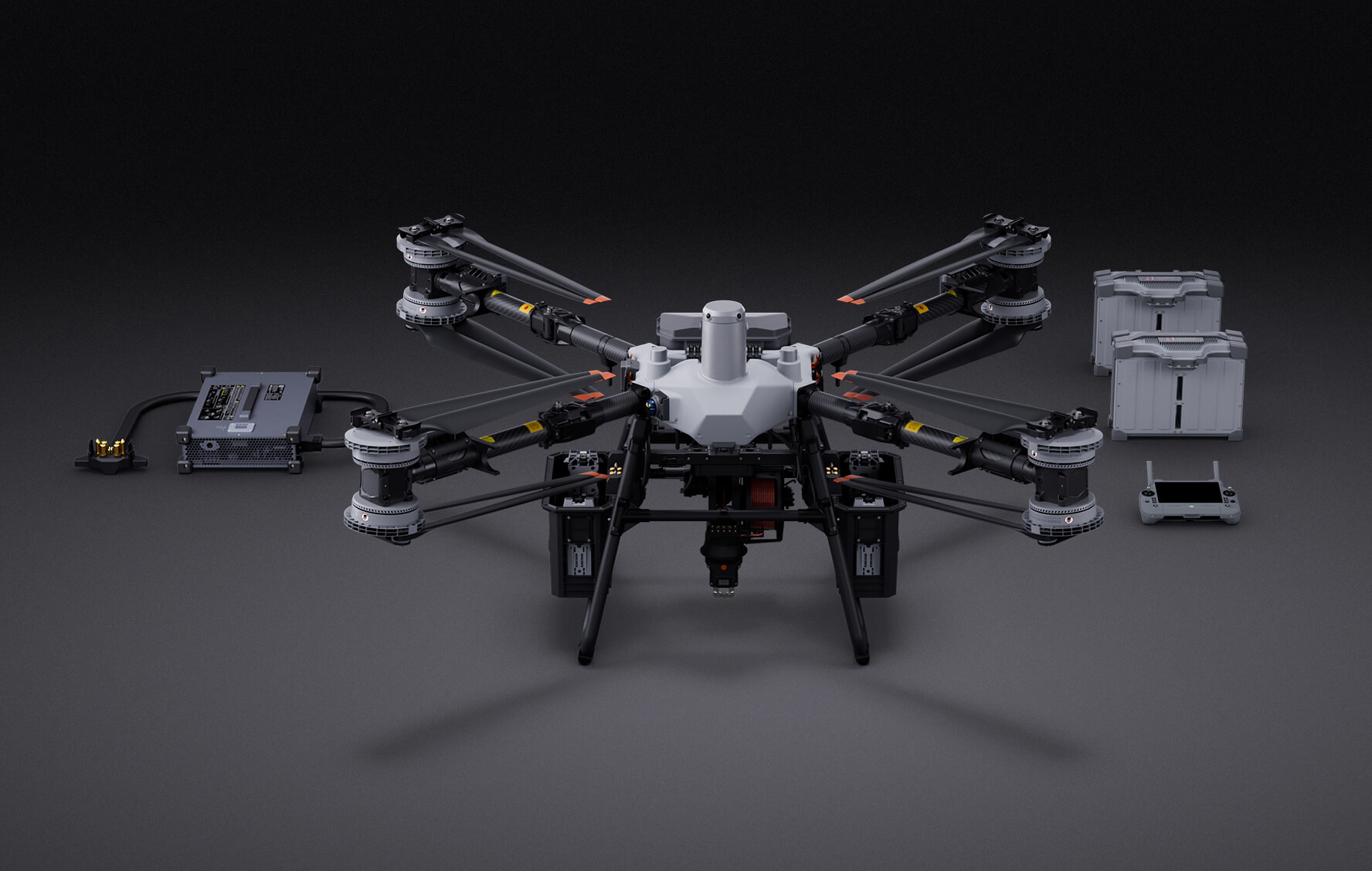

| Dimensions
|
Arms and propellers unfolded: 3220 mm × 3224 mm × 975 mm
|
|
|
Arms unfolded, propellers folded: 1820 mm × 1840 mm × 975 mm
|
|
|
Arms and propellers folded: 1105 mm × 1265 mm × 975 mm
|
| Folding method
|
Folded toward the fuselage
|

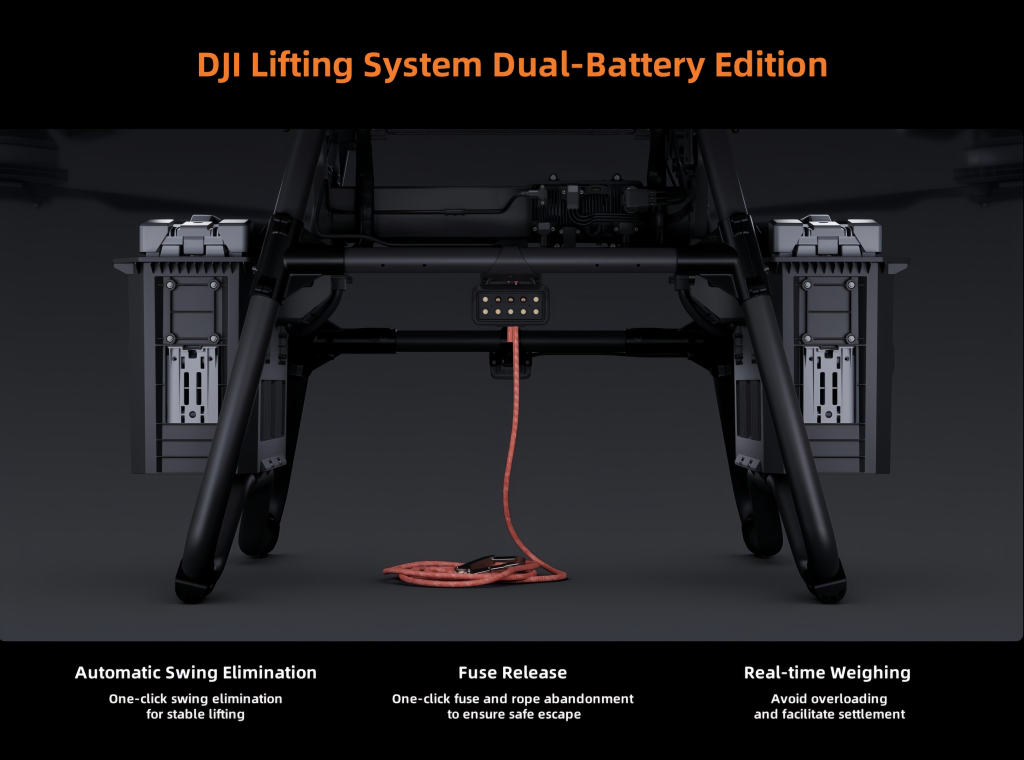

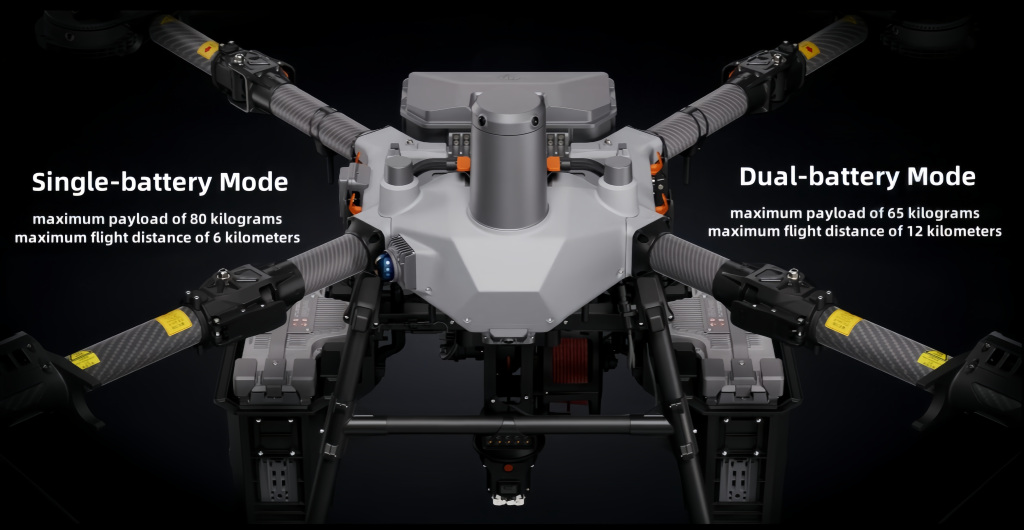

| Onboard battery quantity
|
Supports dual batteries and single battery
|
| Maximum flight distance
|
At maximum takeoff weight: 12 km (dual batteries), 6 km (single battery)
|
| Maximum hovering time
|
At maximum takeoff weight: 12 minutes (dual batteries), 6 minutes (single battery)
|
|
|
At maximum takeoff weight: 14 minutes (dual batteries), 7 minutes (single battery)
|
| Operating temperature range
|
-20℃ to 40℃
|
| Overall protection class
|
IP55
|
| Hovering accuracy
|
RTK enabled: 10 cm (horizontal), 10 cm (vertical)
|
|
|
RTK disabled: 60 cm (horizontal), 30 cm (vertical)
|
| GNSS
|
Full system version: GPS + Galileo + BeiDou + GLONASS
|
|
|
BeiDou version: BeiDou
|
| Maximum ascent speed
|
5 m/s
|
| Maximum descent speed
|
5 m/s
|
| Maximum horizontal flight speed
|
20 m/s
|
| Maximum flight altitude
|
6000 m
|
| Maximum flight height
|
1500 m
|
| Maximum wind resistance speed
|
12 m/s
|
| Power System
|
|
| Stator size
|
155 mm × 16 mm
|
| Motor KV value
|
60 rpm/V
|
| Propeller material
|
Carbon fiber composite
|
| Propeller size
|
62 inches
|
| Propeller type
|
Two-blade folding propeller
|
| Number of rotors
|
8 pairs
|
| Safety System
|
|
| Safety system type
|

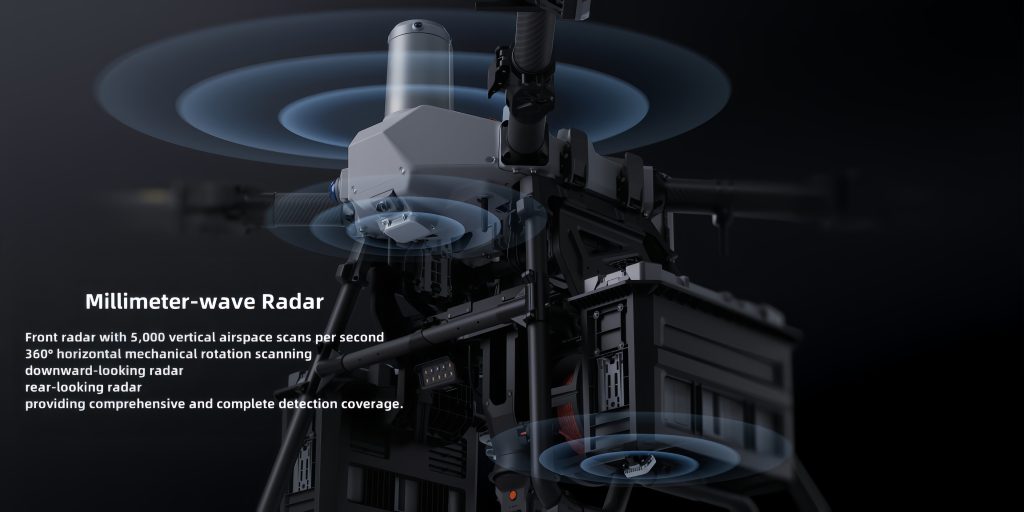

Front millimeter-wave radar
|
|
|
Rear radar (single board)
|
|
|
Downward radar (single board)
|
|
|

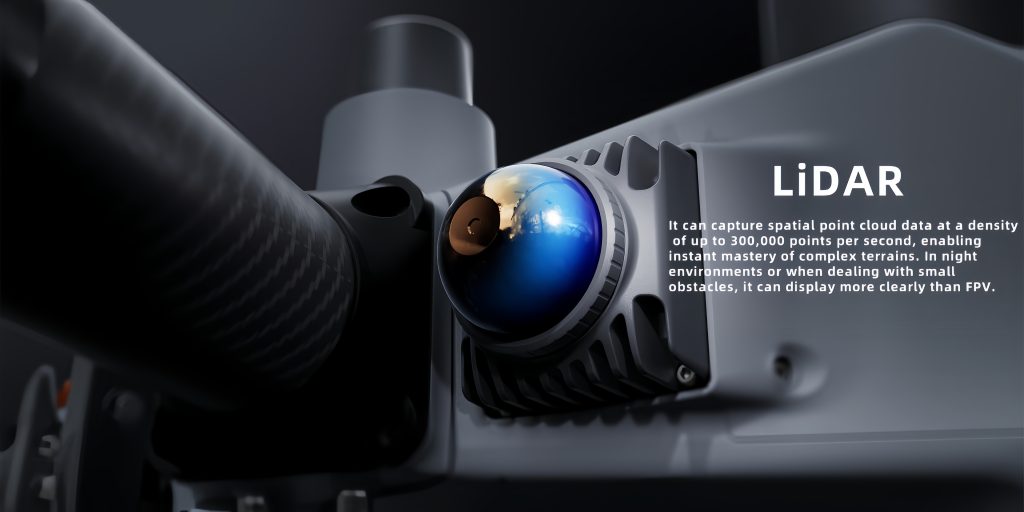

LiDAR
|
|
|

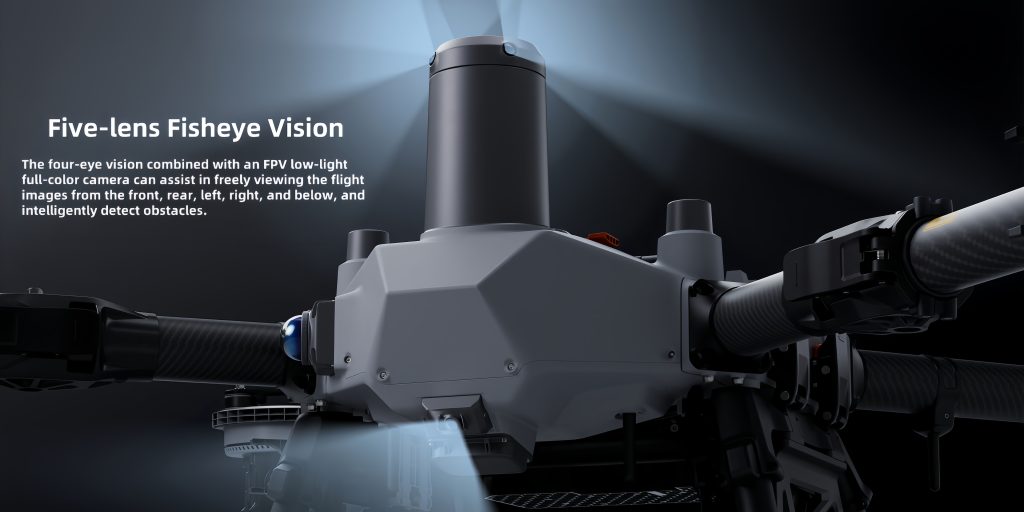

Four-eye vision system
|
|
|
FPV
|
| Millimeter-wave radar EIRP
|
<20 dBm (NCC/MIC/KC/CE/FCC)
|
| Operating ambient temperature
|
-20℃ to 40℃
|
| Operating environment requirements
|
Normal light intensity, rich scene texture features, no contamination.
|
| Operating power consumption
|
|
| LiDAR
|
6.5 W
|
| Front radar
|
18 W
|
| Downward radar
|
5 W
|
| Rear radar
|
5 W
|
| FOV
|
|
| LiDAR
|
272° vertical, 60° horizontal
|
| Front radar
|
360° horizontal, 45° vertical
|
| Downward radar
|
12.5° left-right, 22.5° front-rear
|
| Rear radar
|
45° left-right, 45° front-rear
|
| Four-eye vision system
|
360° horizontal, 180° vertical
|
| FPV camera
|
86° horizontal, 108° vertical
|
| Ranging range
|
Maximum 60 m
|
