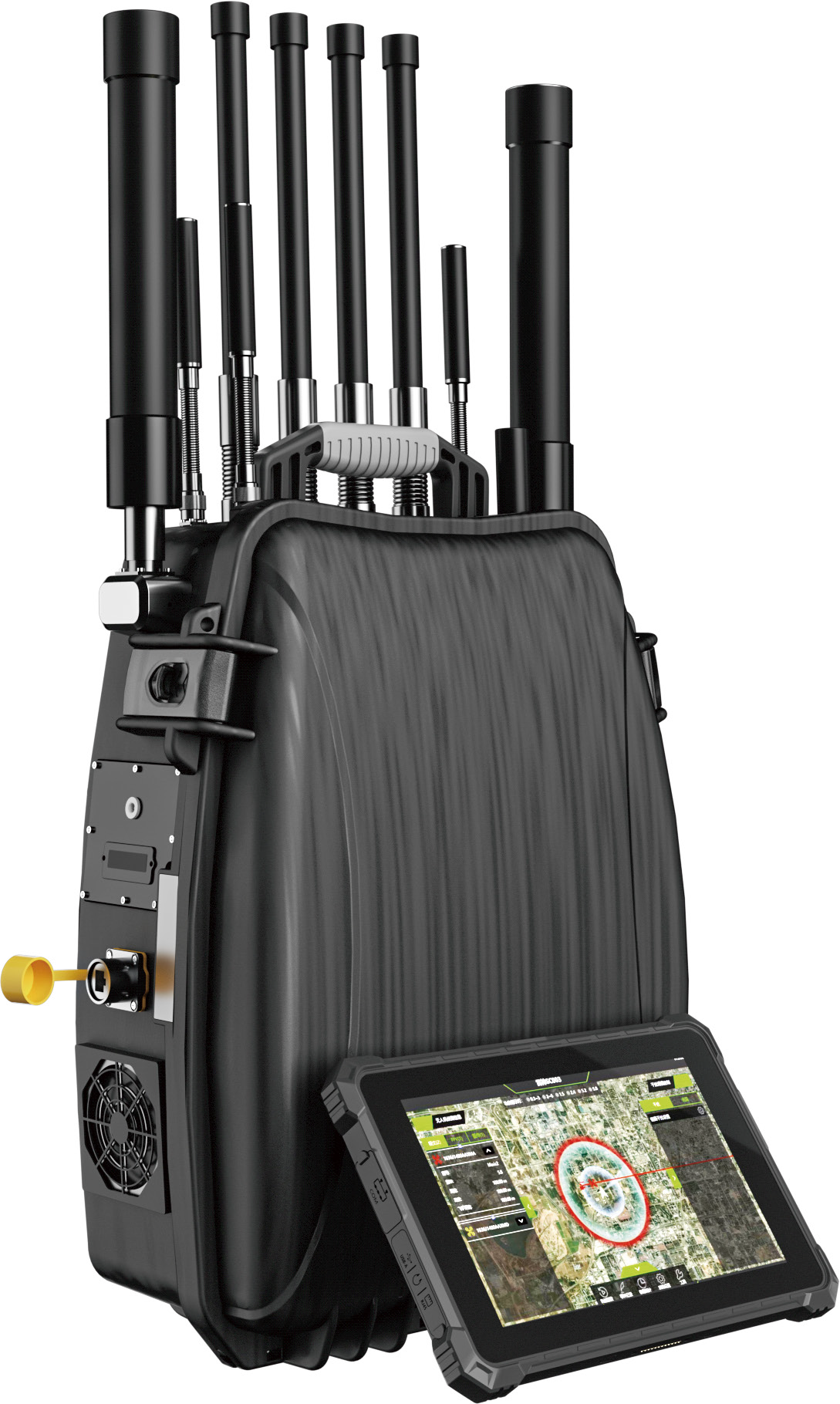

Full-Band-Drone-Detection-Jamming-Backpack

Detection Unit Performance Parameters
Detection band300MHz-6GHz
Detection modeMessage analysis/Digital image transmission detection/Analog image transmission detection/Digital remote control signal detection
Detection modelProtocol analysis: DJI O2/O3/O4 flight control protocol models, national standard message
Digital image transmission detection: common consumer drone models
Analog image transmission detection: analog image transmission models in the 600MHz-6GHz frequency band
Detection rangeMessage resolution ≤2km*
Digital image transmission ≤2km*
Simulate postbacks≤km*
Digital remote control ≤1km*
Interference Unit Performance Parameters
Interference support bandFixed frequency: 1.5G/2.4G/5.2G/5.8G
Write frequency: 0.1G-6G
Distance of interferenceOmnidirectional ≤1km*
Strategy supportAutomatic mode/Manual mode
Machine Performance Parameters
power consumption<300w
Upper computerEquipped with a three-proof tablet
Power supply modeBattery powered/DC28V powered, replaceable battery (optional)
Working temperature-20℃~ +55℃
Waterproof gradeIPx5 (closed cover)
Product weight< 13Kg (excluding antennas and accessories)
Product sizeL * W * H: 540mm * 380mm * 189mm (excluding antenna, strap)

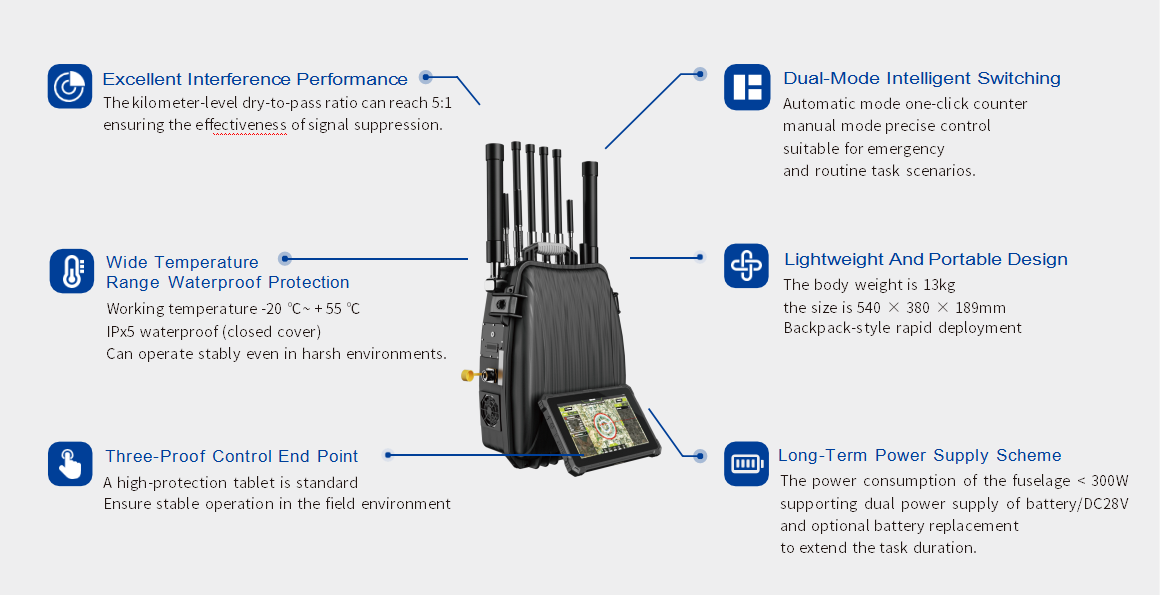

Features of Full-Band Drone Detection Jamming Backpack
