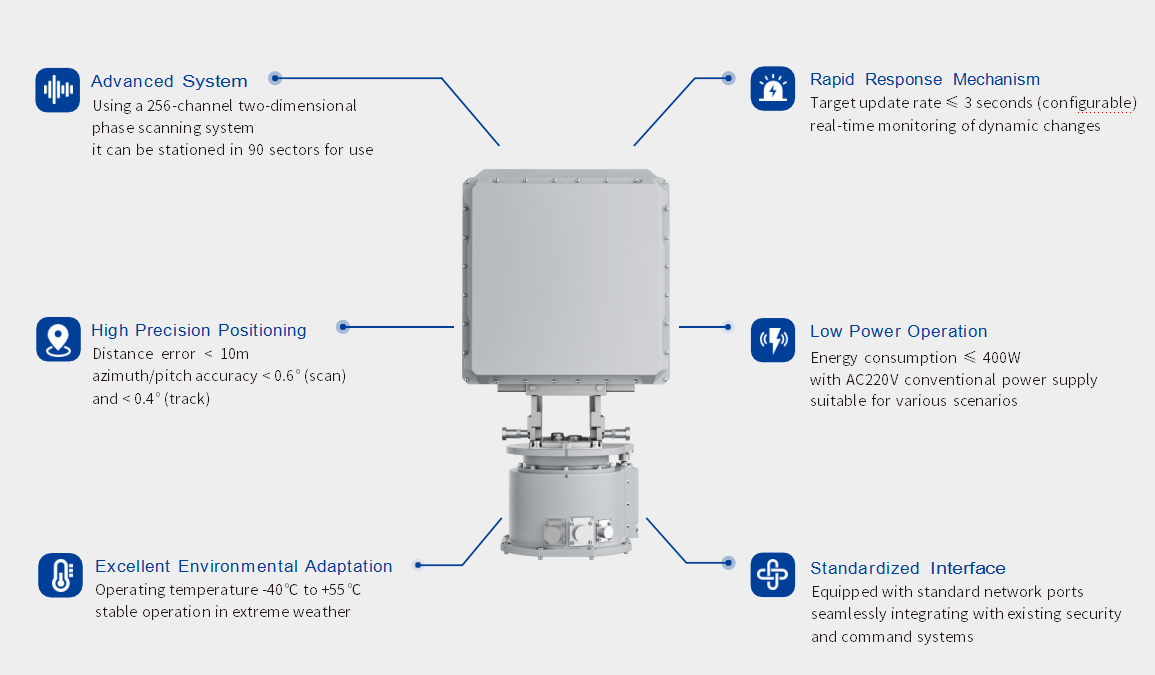

| Detection Unit Performance Parameters | |
| Frequency band | X band |
| Detection range | ≤4km (drone, RCS < 0.01m虏) |
| Blind spot | 100m* |
| Angular coverage | Azimuth: 0~360°, Pitch: 0~30° |
| Tracking function | Equipped with tracking and TAS functions |
| Velocity range | 1m/s~100m/s |
| Accuracy | Distance: < 10m, azimuth/pitch: < 0.6° (scan), azimuth/pitch: < 0.4° (track) |
| Target update rate | Not more than 3s (configurable) |
| Machine Performance Parameters | |
| Interface | Ethernet port |
| Weight | ≤28kg |
| Power supply | AC220V |
| Power consumption | ≤400W |
| Size | Front size: 300mm * 300mm * 130mm (excluding turntable) Equipment size: 536mm * 300mm * 230mm (including turntable) |
| Operating temperature range | Working temperature: -40℃~ 55℃ |
